Features
Horizontal adjustment with single locking tracks
Weight adjustment up to 140KG
Suspension stroke: 50mm
Adjustable backrest

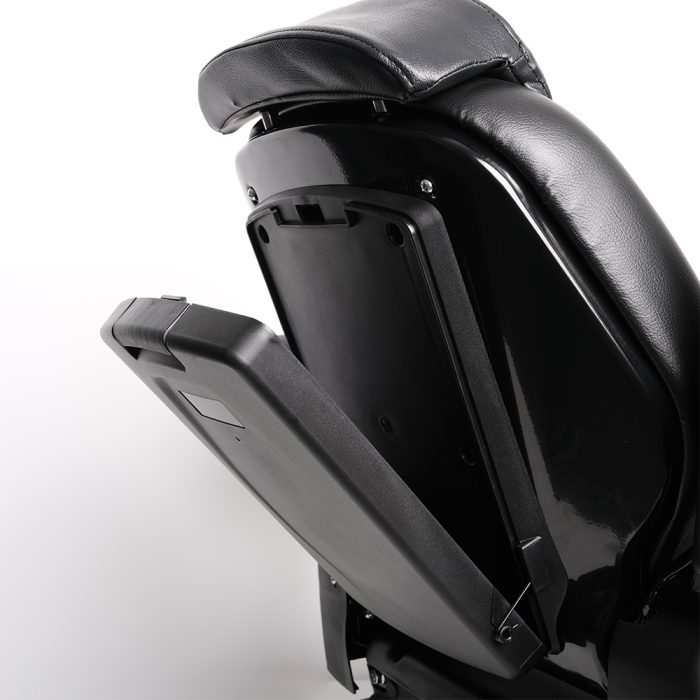

Document bag in the backrest

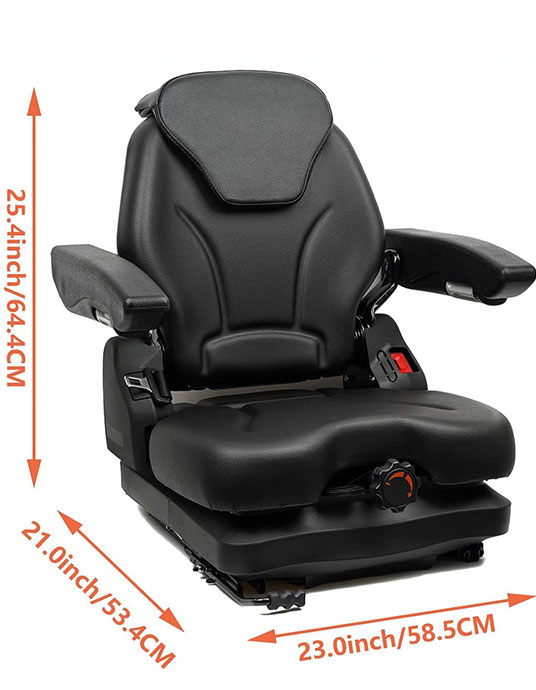

mounting dimension : 230(left to right) *285mm(front to back) or 330(left to right) *285mm(front to back).
Specification
Two slide rail mounting position:230mm/285mm/330mm
Slide rail adjustment:front 75mm,back 90mm.total 165mm
Headrest adjustment:up and down 160mm

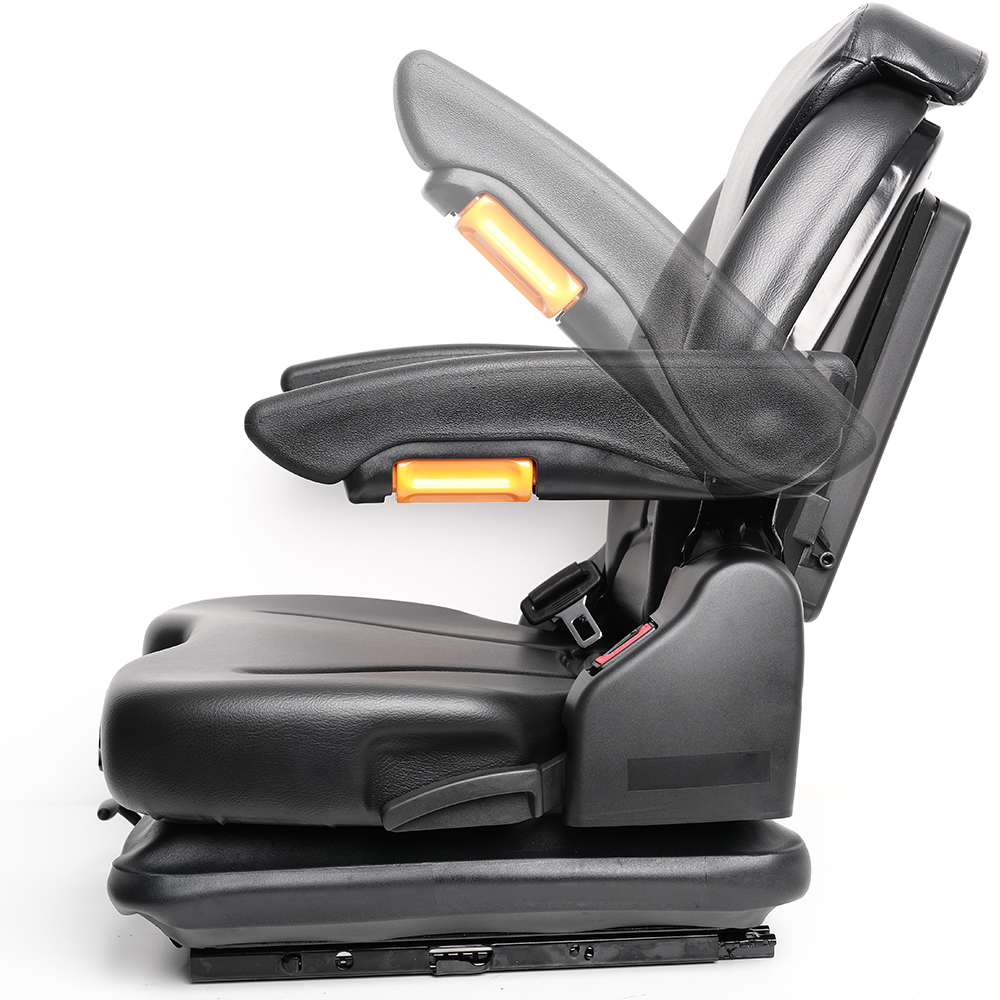

Backrest adjustment:forward 75°,rearward 30°
Weight adjustment:50kg-130kg
Suspension stroke:50mm
