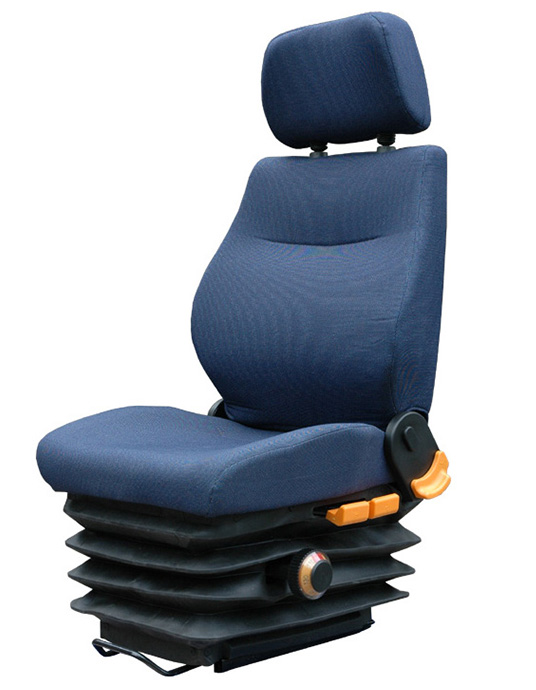

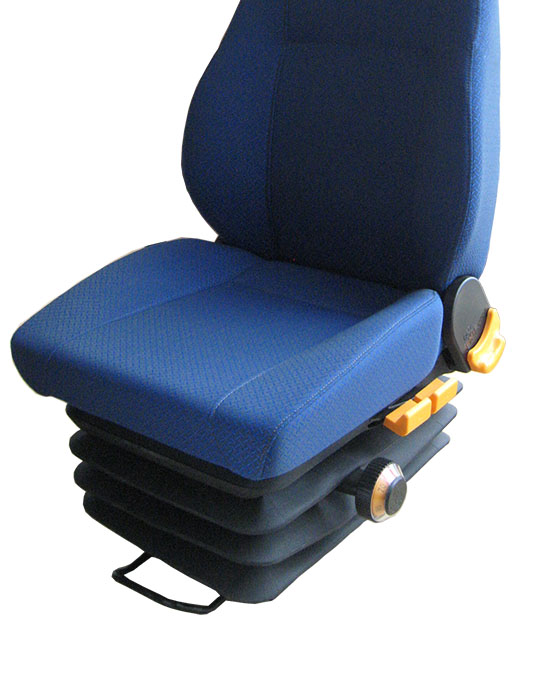

Features

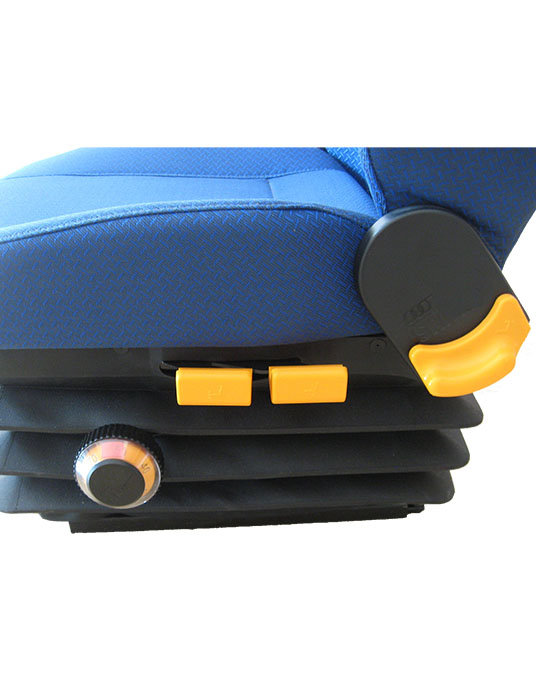

Horizontal adjustment with double locking tracks

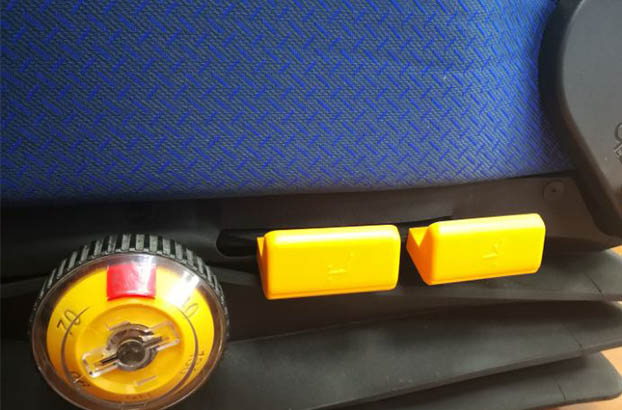

Weight adjustment up to 130KG
Height / rake adjustable

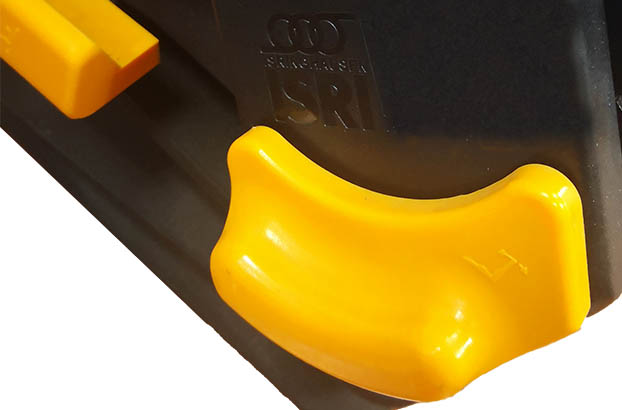

Backrest adjustable
Suspension cover
All control handles can be made in left or right side
Low profile backrest,suitable for vehicles with limited headroom
Specification
Horizontal adjustment: stroke 200mm (10mmx20)
Weight adjustment: adjust range 40 ~ 130Kg
Mechanical suspension function: stroke ±30mm
Height / rake adjustment: adjust range ±60mm, rake adjustable ±12°;
Backrest adjustment: adjust range 80°＋41°
Head restraint adjustment: adjust range 75mm (25mmx3)
Seat size（length x height x width） 550mmx950mmx500mm
Seat cushion height（work state）245mm, seat cushion width 485mm seat cushion depth 460mm
Backrest height 520mm backrest width 480mm
Connect size（L/RxF/B）216mm x 295.5mm
